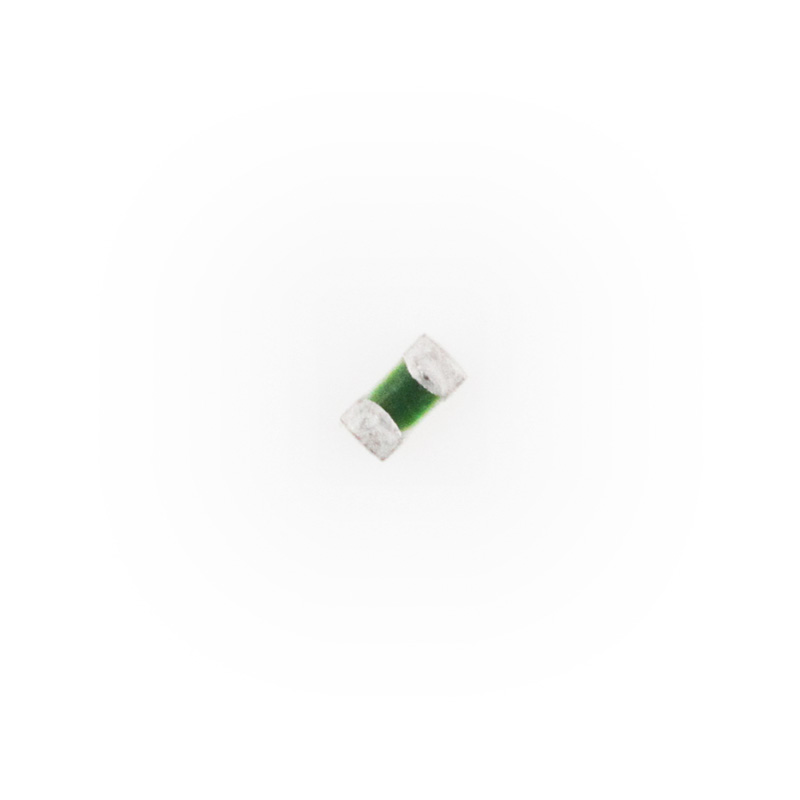

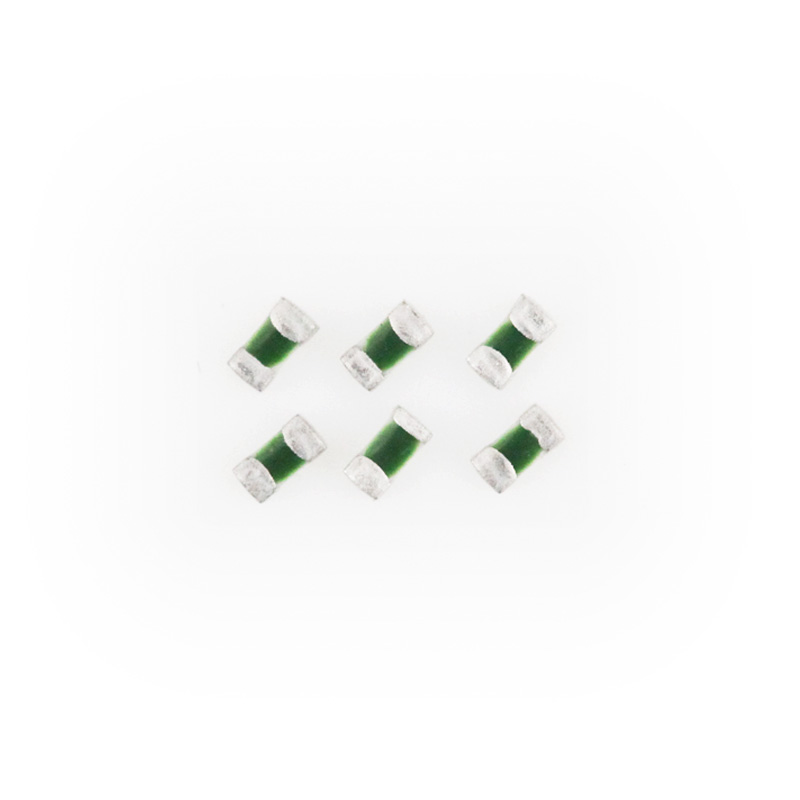

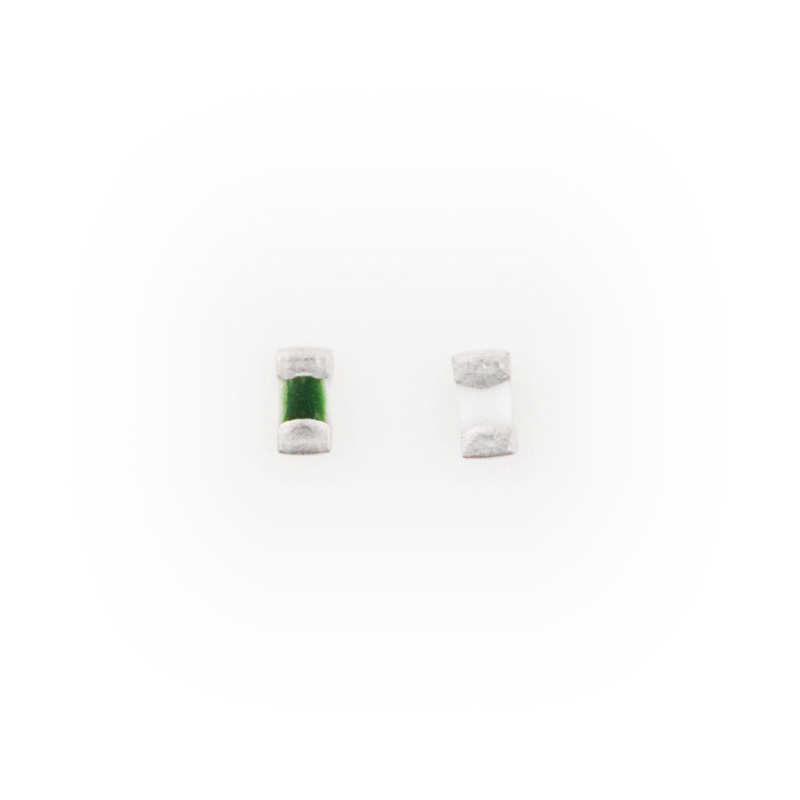

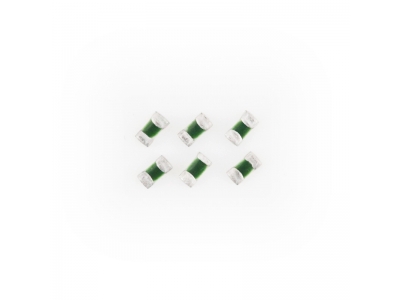

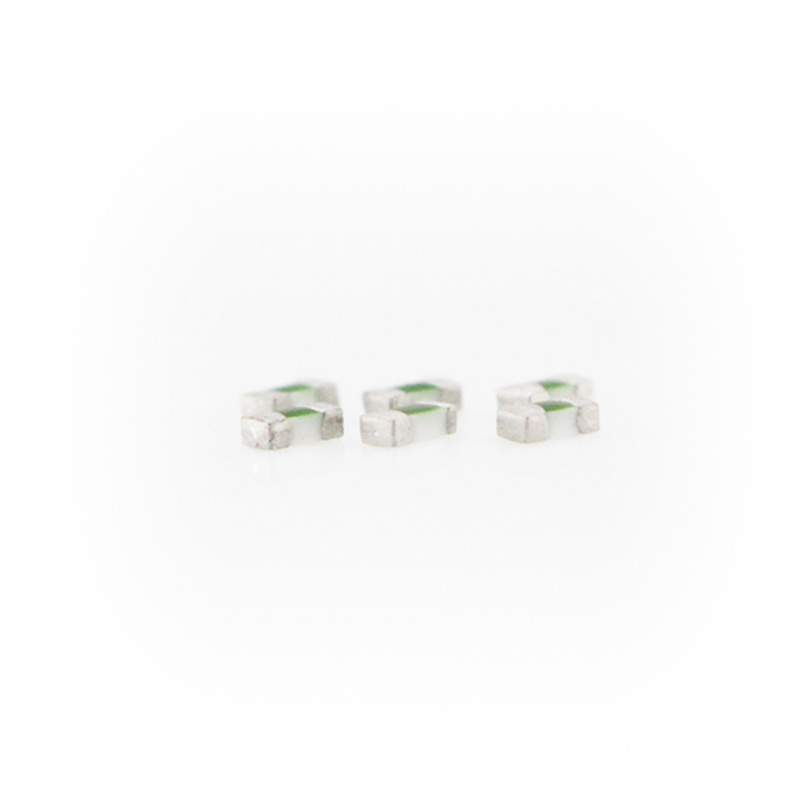

JFC0402一次性貼片保險絲


    集電通0402一次性貼片保險絲、體積小，容易焊接，全新的結構和工藝，能有效改善產品常見的端帽松動和性能離散；無鉛無鹵素，符合環保要求。主要應用于固態照明、AC/DC電源、電子鎮流器、小家電設備等交流應用場合.




    •
                                            品牌：
                                            集電通
      •

    •
                                            分類：
                                            一次性貼片保險絲
      •

    •
                                            最大電壓：
                                            32V
      •

    •
                                            額定電流：
                                            0.2-4A
      •




































    JDTFUSEJFC0402FS快斷 規格書
    JDTFUSEJFC0402TS慢斷 規格書
    JDTFUSE
    電氣特性（25°C）
    Part No.Rated Voltage
    (Vdc)    		Rated Current
    (A)    		Breaking CapacityTypical Cold. Resistance (mΩ)Typical Pre-Arcing I2t (A2 Sec)
    JFC0402-0200FS320.2035A22500.0006
    JFC0402-0250FS320.2535A15000.0010
    JFC0402-0315FS320.31535A10000.0014
    JFC0402-0375FS320.37535A7800.0018
    JFC0402-0500FS320.5035A5000.0043
    JFC0402-0750FS320.7535A2200.011
    JFC0402-1100FS321.0035A1300.040
    JFC0402-1125FS321.2535A1000.048
    JFC0402-1150FS321.5035A780.060
    JFC0402-1200FS322.0035A400.130
    JFC0402-1250FS322.5035A240.200
    JFC0402-1300FS323.0035A180.330
    JFC0402-1350FS323.5035A140.450
    JFC0402-1400FS324.0035A110.600
    JFC0402-1500FS325.0035A8.50.720
    * DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source)
    ** DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25°C
    *** Typical Melting I2t (Measured with a battery bank at rated DC voltage, Measured at 1ms open time, time constant
    of calibrated circuit less than 50 microseconds).
