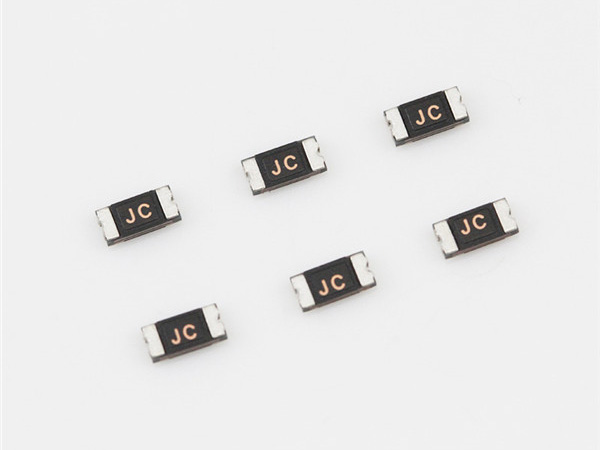

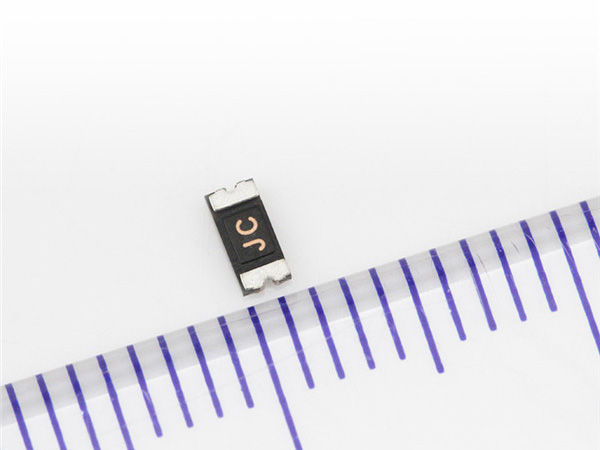

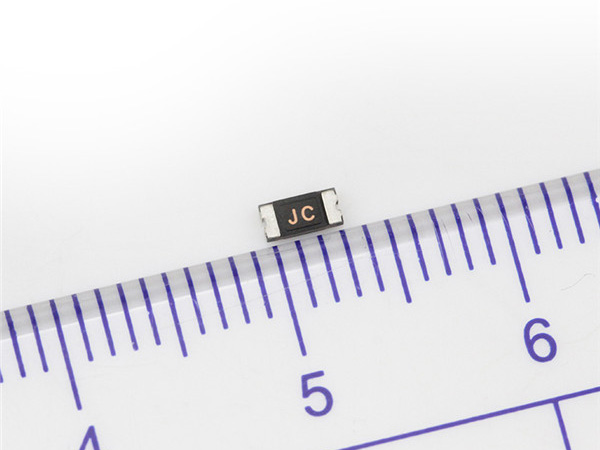

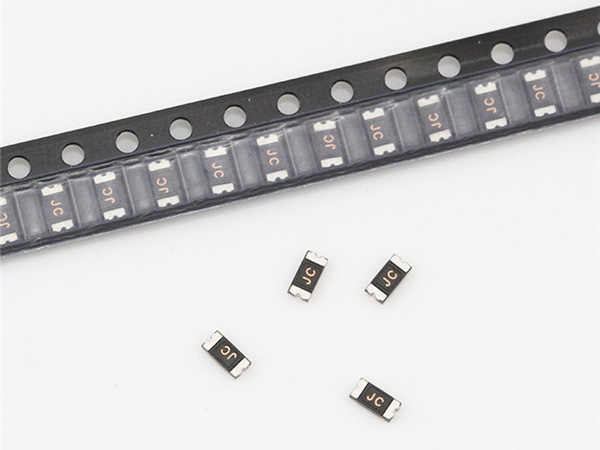

1206SL系列低內(nèi)阻自恢復保險絲
ASMD1206SL系列提供微型表面貼裝過流保護，保持電流范圍為1.5-6A。 該系列適廣泛應用于空間有限的現(xiàn)代電子產(chǎn)品中。
- 品牌： 集電通/JTDFUSE
- 分類： 貼片自恢復保險絲
- 最大電壓： 6-12V
- 額定電流： 1.5~6A
REACH報告
Model | A | B | C | D | E | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| ASMD1206SL110 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL150 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL175 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL200 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL260 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.0 | 0.15 | 0.1 |
| ASMD1206SL300 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL350 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL380 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL400 | 3.0 | 3.5 | 1.5 | 1.8 | 0.5 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL450 | 3.0 | 3.5 | 1.5 | 1.8 | 0.5 | 1.4 | 0.15 | 0.1 |
| ASMD1206SL500 | 3.0 | 3.5 | 1.5 | 1.8 | 0.5 | 1.4 | 0.15 | 0.1 |
| ASMD1206SL550 | 3.0 | 3.5 | 1.5 | 1.8 | 0.6 | 1.6 | 0.15 | 0.1 |
| ASMD1206SL600 | 3.0 | 3.5 | 1.5 | 1.8 | 0.6 | 1.6 | 0.15 | 0.1 |
| ASMD1206SL650 | 3.0 | 3.5 | 1.5 | 1.8 | 0.8 | 1.6 | 0.15 | 0.1 |
| ASMD1206SL700 | 3.0 | 3.5 | 1.5 | 1.8 | 0.8 | 1.6 | 0.15 | 0.1 |
