SOT-23封裝系列ESD保護器具有反應速度快，導通電壓低、體積小、集成度高、同時實現多條數據線保護，電容值較低，是理想的高頻數據保護器件，多樣化封裝,完全可實現在不同位置、空間上靈活的集成化ESD保護。

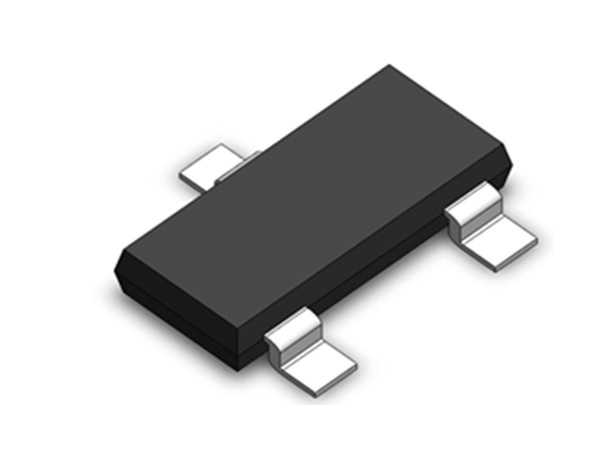

封裝：SOT-23
| Part No. | VRWM .max (V) | VBR .min (V) | CJ .typ (pF) | Ppp @8/20μs (W) | Ipp @8/20μs (A) | IR .max (μA) | Contact (kV) | Channel | Inner Diagram | Package | |
| JET233-24V-C2 | 24 | 27 | 20 | 280 | 6 | 0.2 | ±30 | 2 |  | SOT23 3L |  |
| JES712 | 7 | 7.5 | 40 | 325 | 13 | 0.5 | ±30 | 2 | | SOT23 | |
| JET23-5V-2 | 5 | 6 | 160 | 320 | 23 | 0.5 | ±30 | 2 |  | SOT23 | |
| JET23-3.3V-C2 | 3.3 | 3.8 | 100 | 300 | 25 | 1 | ±30 | 2 | | SOT23 | |
| JET23-5V-C2 | 5 | 6 | 80 | 300 | 20 | 1 | ±30 | 2 | | SOT23 | |
| JET23-12V-C2 | 12 | 13.3 | 50 | 300 | 12 | 0.5 | ±30 | 2 | | SOT23 | |
| JET23-15V-C2 | 15 | 16.7 | 40 | 300 | 8 | 0.5 | ±30 | 2 | | SOT23 | |
| JET23-24V-C2 | 24 | 27 | 15 | 300 | 5 | 0.2 | ±30 | 2 | | SOT23 | |
| JET23-32V-C2 | 32 | 35.6 | 15 | 300 | 4 | 0.2 | ±30 | 2 | | SOT23 | |
| JET23-36V-C2 | 36 | 38 | 12 | 300 | 4 | 0.2 | ±30 | 2 | | SOT23 | |
| JET23-5V-UL2 | 5 | 6 | 0.3 | 80 | 5 | 0.5 | ±20 | 2 | | SOT23 | |
VRWM：Reverse Working Voltage
VBR：Snap-Back Voltage
CJ：Junction Capacitance
Ppp：Peak Pulse Power
Ipp：Peak Pulse Current
IR：Reverse Leakage Current
Contact：IEC 61000-4-2;Contact Discharge
