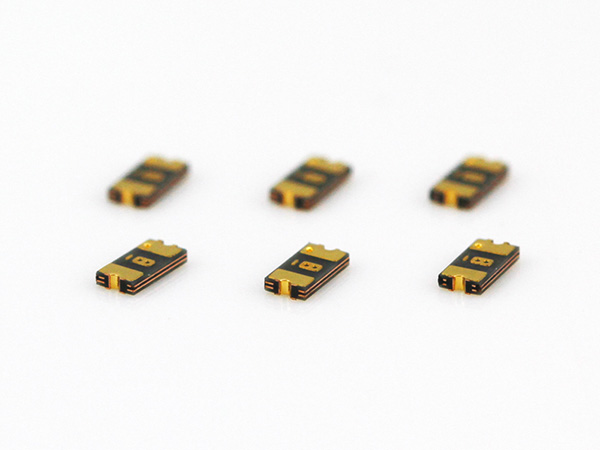

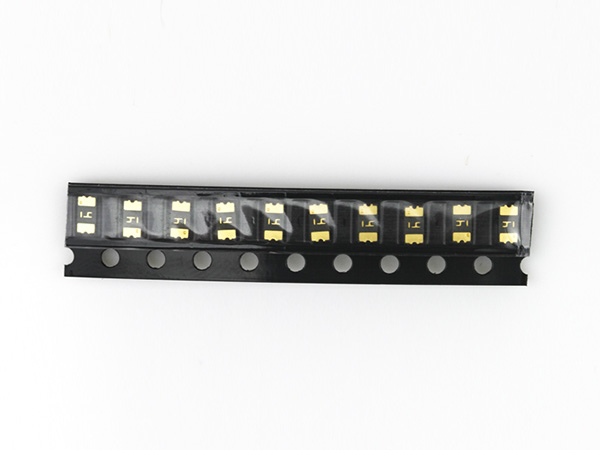

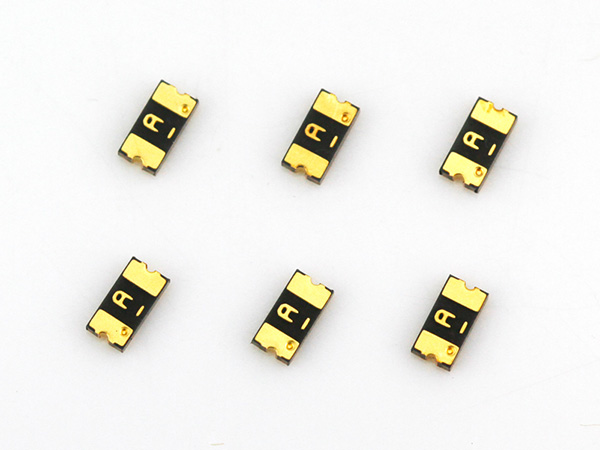

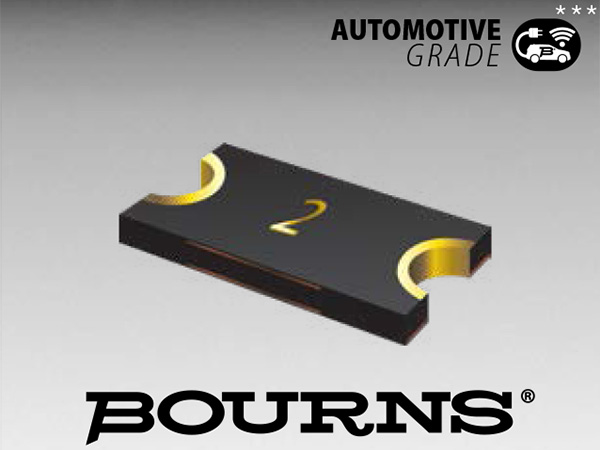

Bourns伯恩斯MF-NSMF系列自恢復保險絲


    Bourns伯恩斯MF-NSMF系列自恢復保險絲屬表面貼裝保險絲，封裝尺寸為1206，小體積，緊湊設計，節省板子空間；反應時間快。符合RoHS標準*且無鹵素**。




    •
                                            品牌：
                                            伯恩斯/Bourns
      •

    •
                                            分類：
                                            SMD自恢復保險絲
      •

    •
                                            最大電壓：
                                            6~60V
      •

    •
                                            額定電流：
                                            0.05A~0.75A
      •

    •
                                            封裝：
                                            1206封裝
      •




































    JDTFUSEBourns伯恩斯MF-NSMF系列規格書
    Model
    Vmax.
     (V)
    Imax.
     (A)
    Ihold

 at23℃
    (A)
    Itrip

 @23℃
    (A)
    Pd
    typ.
    (W)
    Maximum Time To Trip
    @23℃
    Resistance
    @23℃
    Current
    (A)
    Time  (Sec.)
    Rimin.
     (Ω)
    R1max.
     (Ω)
    MF-NSMF005/30X
    30
    40
    0.05
    0.15
    0.6
    0.5
    1.50
    2.80
    20
    MF-NSMF005/60X
    60
    10
    0.05
    0.15
    0.6
    0.5
    1.50
    2.80
    20
    MF-NSMF010/30X
    30
    40
    0.10
    0.25
    0.6
    0.5
    1.50
    1.35
    15
    MF-NSMF010/60X
    60
    10
    0.10
    0.25
    0.6
    0.5
    1.50
    1.35
    15
    MF-NSMF012
    30
    10
    0.12
    0.29
    0.6
    1.0
    0.20
    1.35
    8.5
    MF-NSMF012/48X
    48
    10
    0.12
    0.29
    0.6
    1.0
    0.20
    1.00
    6.5
    MF-NSMF016
    30
    10
    0.16
    0.37
    0.6
    1.0
    0.30
    0.70
    6.0
    MF-NSMF016/48X
    48
    10
    0.16
    0.37
    0.6
    1.0
    0.30
    0.70
    5.0
    MF-NSMF020
    24
    10
    0.20
    0.46
    0.6
    1.0
    0.6
0
    0.60
    2.6
    MF-NSMF020X
    30
    60
    0.20
    0.40
    0.6
    1.0
    0.60
    0.60
    3.3
    MF-NSMF025X
    16
    20
    0.25
    0.50
    0.6
    8.0
    0.08
    0.45
    2.3
    MF-NSMF025/24X
    24
    80
    0.25
    0.50
    0.6
    8.0
    0.05
    0.45
    2.3
    MF-NSMF025/30X
    30
    60
    0.25
    0.50
    0.6
    8.0
    0.05
    0.45
    2.3
    MF-NSMF035
    6
    100
    0.35
    0.75
    0.6
    8.0
    0.10
    0.30
    1.2
    MF-NSMF035X
    16
    20
    0.35
    0.75
    0.6
    3.5
    0.14
    0.30
    1.4
    MF-NSMF035/24X
    24
    80
    0.35
    0.75
    0.6
    8.0
    0.10
    0.30
    1.4
    MF-NSMF035/30X
    30
    60
    0.35
    0.75
    0.6
    8.0
    0.10
    0.30
    1.4
    MF-NSMF050/8X
    8
    100
    0.50
    1.00
    0.6
    8.0
    0.10
    0.15
    0.75
    MF-NSMF050
    13.2
    100
    0.50
    1.00
    0.6
    8.0
    0.10
    0.15
    0.70
    MF-NSMF050/16X
    16
    100
    0.50
    1.00
    0.6
    8.0
    0.10
    0.15
    0.75
    MF-NSMF050/24X
    24
    80
    0.50
    1.00
    0.6
    8.0
    0.10
    0.15
    0.75
    MF-NSMF075
    6
    100
    0.75
    1.50
    0.6
    8.0
    0.20
    0.10
    0.40
    MF-NSMF075/8X
    8
    100
    0.75
    1.50
    0.6
    8.0
    0.10
    0.09
    0.35
    MF-NSMF075/13X
    13.2
    100
    0.75
    1.50
    0.6
    8.0
    0.10
    0.09
    0.35
    MF-NSMF075X/16
    16
    100
    0.75
    1.50
    0.6
    8.0
    0.10
    0.09
    0.35

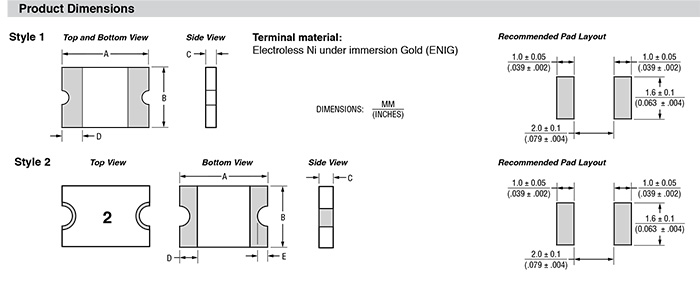

    JDTFUSE
    Model
    A
    B
    C
    D
    E
    Style
    Min.
    Max.
    Min.
    Max.
    Min.
    Max.
    Max..
    Min.
    Min.
    Max.
    MF-NSMF005/30X3/0.1183.4/0.1341.4/0.0551.8/0.0710.6/0.0241.1/0.0430.25/0.011/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF005/60X0.6/0.0241.1/0.043
    2
    MF-NSMF010/30X0.6/0.0241.1/0.043
    2
    MF-NSMF010/60X0.6/0.0241.1/0.043
    2
    MF-NSMF0120.7/0.0281.1/0.043
    1
    MF-NSMF012/48X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF0160.48/0.0190.85/0.033
    1
    MF-NSMF016/48X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF0200.48/0.0190.85/0.033
    1
    MF-NSMF020X0.4/0.0160.85/0.0331/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF025X0.4/0.0160.85/0.033
    2
    MF-NSMF025/24X0.4/0.0160.85/0.033
    2
    MF-NSMF025/30X0.4/0.0160.85/0.033
    2
    MF-NSMF0350.4/0.0160.85/0.033
    1
    MF-NSMF035X0.4/0.0160.85/0.0331/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF035/24X0.4/0.0160.85/0.033
    2
    MF-NSMF035/30X0.75/0.031.25/0.049
    2
    MF-NSMF050/8X0.4/0.0160.85/0.033
    2
    MF-NSMF0500.48/0.0190.85/0.033
    1
    MF-NSMF050/16X0.4/0.0160.85/0.0331/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF050/24X0.75/0.031.25/0.049
    2
    MF-NSMF0750.4/0.0160.7/0.028
    1
    MF-NSMF075/8X0.35/0.0140.8/0.0311/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF075/13X0.7/0.0281.2/0.047
    2
    MF-NSMF075/16X0.7/0.0281.2/0.047
    2
    MF-NSMF1100.4/0.0160.7/0.028
    1
    MF-NSMF110/6X0.35/0.0140.8/0.0311/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF110/16X0.6/0.0241.1/0.043
    2
    MF-NSMF1250.4/0.0160.7/0.028
    1
    MF-NSMF125/8X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF1500.4/0.0160.7/0.028
    1
    MF-NSMF150/6X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
    2
    MF-NSMF01753.5/0.1380.7/0.0281.6/0.063
    1
    MF-NSMF2000.7/0.0281.6/0.063
    1
    DIMENSIONS:MM/INCHES
