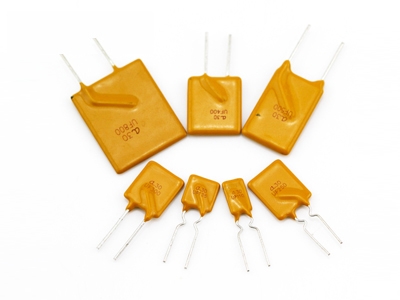

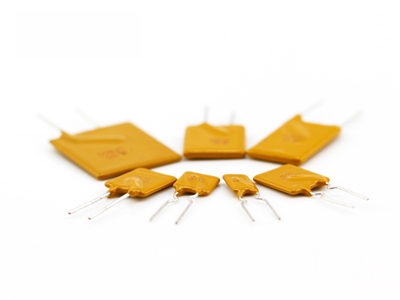

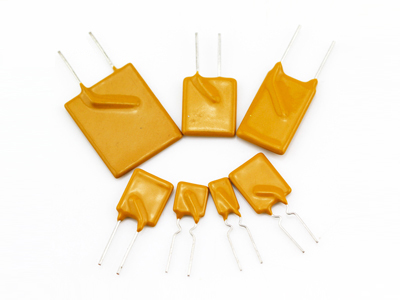

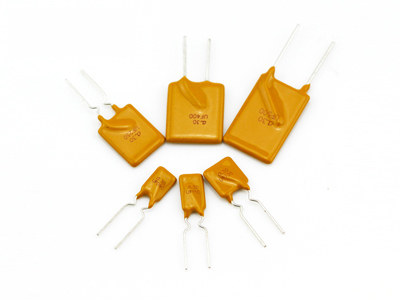

A30系列 -自恢復保險絲
A30系列自恢復保險絲產品廣泛適用于中等耐電壓能力的電路中，如微電機、計算機接口、鼠標、CPU、變壓器中、安防設備、測試測量設備、衛星接收系統、玩具行業等領域。
- 品牌： 集電通/JDTFUSE
- 分類： 插件保險絲PTC
- 最大電壓： 30V
- 額定電流： 0.5A-9A
A30規格書
電氣特性（25°C）
Model | Vmax | Imax | Ihold | Itrip | Pdtyp. | Maximum Time To Trip | Rimin | Rimax | R1max | |
(Vdc) | (A) | (A) | (A) | (W) | Current(A) | Time(Sec) | (Ω) | (Ω) | (Ω) | |
A30-030 | 30 | 40 | 0.30 | 0.60 | 0.44 | 8.00 | 0.30 | 0.300 | 1.100 | 1.600 |
A30-040 | 30 | 40 | 0.40 | 0.80 | 0.45 | 8.00 | 0.30 | 0.200 | 0.900 | 1.300 |
A30-050 | 30 | 40 | 0.50 | 1.00 | 0.5 | 2.50 | 4.10 | 0.250 | 0.600 | 1.200 |
A30-065 | 30 | 40 | 0.65 | 1.30 | 0.47 | 8.00 | 0.40 | 0.200 | 0.500 | 0.800 |
A30-070 | 30 | 40 | 0.70 | 0.14 | 0.6 | 3.50 | 4.30 | 0.140 | 0.220 | 0.350 |
A30-075 | 30 | 40 | 0.75 | 1.50 | 0.6 | 3.75 | 5.20 | 0.120 | 0.370 | 0.420 |
A30-090 | 30 | 40 | 0.90 | 1.80 | 0.6 | 4.50 | 5.90 | 0.070 | 0.220 | 0.300 |
A30-110 | 30 | 40 | 1.10 | 2.20 | 0.7 | 5.50 | 6.60 | 0.050 | 0.200 | 0.260 |
A30-135 | 30 | 40 | 1.35 | 2.70 | 0.8 | 6.75 | 7.30 | 0.040 | 0.160 | 0.220 |
A30-160 | 30 | 40 | 1.60 | 3.20 | 0.9 | 8.00 | 8.00 | 0.030 | 0.140 | 0.180 |
A30-185 | 30 | 40 | 1.85 | 3.70 | 1.0 | 9.25 | 8.70 | 0.030 | 0.120 | 0.150 |
A30-250 | 30 | 40 | 2.50 | 5.00 | 1.2 | 12.5 | 10.3 | 0.020 | 0.080 | 0.100 |
A30-300 | 30 | 40 | 3.00 | 6.00 | 2.0 | 15.0 | 10.8 | 0.020 | 0.070 | 0.100 |
A30-400 | 30 | 40 | 4.00 | 8.00 | 2.5 | 20.0 | 12.7 | 0.010 | 0.060 | 0.090 |
A30-500 | 30 | 40 | 5.00 | 10.00 | 3.0 | 25.0 | 14.5 | 0.010 | 0.050 | 0.080 |
A30-600 | 30 | 40 | 6.00 | 12.00 | 3.5 | 30.0 | 16.0 | 0.005 | 0.040 | 0.060 |
A30-700 | 30 | 40 | 7.00 | 14.00 | 3.8 | 35.0 | 17.5 | 0.005 | 0.030 | 0.050 |
A30-800 | 30 | 40 | 8.00 | 16.00 | 4.0 | 40.0 | 18.8 | 0.005 | 0.025 | 0.180 |
A30-900 | 30 | 40 | 9.00 | 18.00 | 4.2 | 40.0 | 20.0 | 0.005 | 0.020 | 0.025 |
V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流. （推薦閱讀：A600系列 |自恢復保險絲）
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.
JDTFUSE | Cross Reference | |||
Tyco / Raychem | Bourns / Multifuse? | Polytronics / EVERFUSE? | Littelfuse | |
A30-030 | - | - | - | 30R030 |
A30-040 | - | - | - | 30R040 |
A30-050 | - | - | - | 30R050 |
A30-065 | - | - | - | 30R065 |
A30-075 | - | - | - | 30R075 |
A30-090 | RUEF090 | MF-R090-0-009 | RLD30P090UF | 30R090 |
A30110 | RUEF110 | MF-R110 | RLD30P110UF | 30R110 |
A30-135 | RUEF135 | MF-R135 | RLD30P135UF | 30R135 |
A30-160 | RUEF160 | MF-R160 | RLD30P160UF | 30R160 |
A30-185 | RUEF185 | MF-R185 | RLD30P185UF | 30R185 |
A30-250 | RUEF250 | MF-R250 | RLD30P250UF | 30R250 |
A30-300 | RUEF300 | MF-R300 | RLD30P300UF | 30R300 |
A30-400 | RUEF400 | MF-R400 | RLD30P400UF | 30R400 |
A30-500 | RUEF500 | MF-R500 | RLD30P500UF | 30R500 |
A30-600 | RUEF600 | MF-R600 | RLD30P600UF | 30R600 |
A30-700 | RUEF700 | MF-R700 | RLD30P700UF | 30R700 |
A30-800 | RUEF800 | MF-R800 | RLD30P800UF | 30R800 |
A30-900 | RUEF900 | MF-R900 | RLD30P900UF | 30R900 |
Model | A | B | C | D | E | F | FIG |
Max. | Max. | Max. | Min. | Max. | Typ. | ||
A30-030 | 7.4 | 12.7 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 1 |
A30-040 | 7.4 | 12.7 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 1 |
A30-050 | 7.4 | 12.7 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 1 |
A30-065 | 7.4 | 13.0 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 1 |
A30-070 | 7.4 | 14.2 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A30-075 | 7.4 | 14.2 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 1 |
A30-090 | 7.4 | 18.5 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A30-110 | 7.4 | 18.5 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A30-135 | 9.2 | 17.6 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A300-160 | 9.2 | 20.2 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A30-185 | 10.2 | 20.2 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A30-200 | 10.2 | 17.7 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A30-250 | 13.2 | 22.4 | 5.1±0.5 | 7.6 | 3.0 | 0.9 | 2 |
A30-300 | 13.2 | 20.4 | 5.1±0.5 | 7.6 | 3.0 | 1.2 | 3 |
A30-400 | 14.0 | 23.7 | 5.1±0.5 | 7.6 | 3.0 | 1.2 | 3 |
A30-500 | 14.0 | 24.9 | 10.2±0.5 | 7.6 | 3.0 | 1.2 | 3 |
A30-600 | 17.2 | 27.0 | 10.2±0.5 | 7.6 | 3.0 | 1.2 | 3 |
A30-700 | 19.1 | 27.0 | 10.2±0.5 | 7.6 | 3.0 | 1.2 | 3 |
A30-800 | 23.5 | 29.2 | 10.2±0.5 | 7.6 | 3.0 | 1.2 | 3 |
A30-900 | 23.5 | 30.0 | 10.2±0.5 | 7.6 | 3.0 | 1.2 | 3 |
