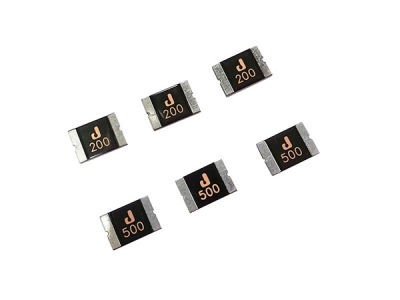

    ASMD2920 PPTC Resettable Fuse


    The ASMD2920 series provides surface mount
    resettable overcurrent protection with holding current from 0.3A to 7.0A.
    This series is suitable for applications with higher holding current and higher working voltage up to 60V.




    •
                                            Brand：
                                            JDT FUSE
      •

    •
                                            Classification：
                                            SMD PTC
      •

    •
                                            Voltage：
                                            6V-60V
      •

    •
                                            Current：
                                            0.3A-3A
      •




































    Electrical properties

    Part No.
    Vmax
    (Vdc)
    Imax
    (A)
    Ihold
    @25℃
    (A)
    Itrip
    @25℃
    (A)
    Pd
    (W)
    Maximum Time
    To Trip
    Resistance
    Current
    (A)
    Time
    (Sec.)
    Rimin
    (Ω)
    R1max
    (Ω)
    ASMD2920-030
    60
    100
    0.30
    0.60
    1.5
    1.5
    3.0
    0.600
    4.800
    ASMD2920-050
    60
    100
    0.50
    1.00
    1.5
    2.5
    4.0
    0.180
    1.400
    ASMD2920-075
    33
    100
    0.75
    1.50
    1.5
    8.0
    0.3
    0.100
    1.000
    ASMD2920-075-60V
    60
    100
    0.75
    1.50
    1.5
    8.0
    0.3
    0.100
    1.000
    ASMD2920-100
    33
    100
    1.00
    2.00
    1.5
    8.0
    0.5
    0.065
    0.410
    ASMD2920-100 -60V
    60
    100
    1.00
    2.00
    1.5
    8.0
    0.5
    0.065
    0.410
    ASMD2920-125
    33
    100
    1.25
    2.50
    1.5
    8.0
    2.0
    0.050
    0.250
    ASMD2920-150
    33
    100
    1.50
    3.00
    1.5
    8.0
    2.0
    0.035
    0.230
    ASMD2920-185
    33
    100
    1.85
    3.70
    1.5
    8.0
    2.5
    0.030
    0.150
    ASMD2920-200
    16
    100
    2.00
    4.00
    1.5
    8.0
    4.5
    0.020
    0.120
    ASMD2920-200-24V
    24
    100
    2.00
    4.00
    1.5
    8.0
    4.5
    0.020
    0.120
    ASMD2920-200-33V
    33
    100
    2.00
    4.00
    1.5
    8.0
    4.5
    0.020
    0.120
    ASMD2920-250
    16
    100
    2.50
    5.00
    1.5
    8.0
    16.0
    0.020
    0.085
    ASMD2920-250-24V
    24
    100
    2.50
    5.00
    1.5
    8.0
    16.0
    0.020
    0.085
    ASMD2920-260
    6
    100
    2.60
    5.20
    1.5
    8.0
    10.0
    0.014
    0.075
    ASMD2920-260-16V
    16
    100
    2.60
    5.20
    1.5
    8.0
    10.0
    0.014
    0.075
    ASMD2920-300
    6
    40
    3.00
    6.00
    1.5
    8.0
    20.0
    0.012
    0.048
    ASMD2920-300-16V
    16
    40
    3.00
    6.00
    1.5
    8.0
    20.0
    0.012
    0.048
    ASMD2920-300-30V
    30
    40
    3.00
    6.00
    1.5
    8.0
    20.0
    0.012
    0.048
    ASMD2920-400
    16
    40
    4.00
    8.00
    1.5
    20.0
    4.0
    0.008
    0.040
    ASMD2920-400-6V
    6
    40
    4.00
    8.00
    1.5
    20.0
    4.0
    0.008
    0.040
    ASMD2920-400-24V
    24
    40
    4.00
    8.00
    1.5
    20.0
    4.0
    0.008
    0.040
    ASMD2920-500
    6
    40
    5.00
    10.00
    1.5
    25.0
    5.0
    0.005
    0.031
    ASMD2920-500-12V
    12
    40
    5.00
    10.00
    1.5
    25.0
    5.0
    0.005
    0.031
    ASMD2920-500-16V
    16
    40
    5.00
    10.00
    1.5
    25.0
    5.0
    0.005
    0.031
    ASMD2920-600
    6
    40
    6.00
    12.00
    1.5
    25.0
    6.0
    0.004
    0.020
    ASMD2920-600-12V
    12
    40
    6.00
    12.00
    1.5
    25.0
    6.0
    0.004
    0.020
    ASMD2920-700
    6
    40
    7.00
    14.00
    1.5
    25.0
    6.0
    0.0025
    0.010
    ASMD2920-700-12V
    12
    40
    7.00
    14.00
    1.5
    25.0
    6.0
    0.0025
    0.010







    JDTFUSE

    Model
    A
    B
    C
    D
    E
    Min.
    Max.
    Min.
    Max.
    Min.
    Max.
    Min.
    Min.
    ASMD2920-030
    6.73
    7.98
    4.8
    5.44
    0.6
    1.2
    0.3
    0.25
    ASMD2920-050
    6.73
    7.98
    4.8
    5.44
    0.6
    1.2
    0.3
    0.25
    ASMD2920-075
    6.73
    7.98
    4.8
    5.44
    0.6
    1.3
    0.3
    0.25
    ASMD2920-100
    6.73
    7.98
    4.8
    5.44
    0.4
    1.0
    0.3
    0.25
    ASMD2920-100-60V
    6.73
    7.98
    4.8
    5.44
    1.0
    2.1
    0.3
    0.25
    ASMD2920-125
    6.73
    7.98
    4.8
    5.44
    0.4
    1.0
    0.3
    0.25
    ASMD2920-150
    6.73
    7.98
    4.8
    5.44
    0.5
    1.3
    0.3
    0.25
    ASMD2920-185
    6.73
    7.98
    4.8
    5.44
    0.6
    1.4
    0.3
    0.25
    ASMD2920-200
    6.73
    7.98
    4.8
    5.44
    0.6
    1.4
    0.3
    0.25
    ASMD2920-250
    6.73
    7.98
    4.8
    5.44
    0.6
    1.4
    0.3
    0.25
    ASMD2920-260
    6.73
    7.98
    4.8
    5.44
    0.6
    1.4
    0.3
    0.25
    ASMD2920-300
    6.73
    7.98
    4.8
    5.44
    0.6
    1.2
    0.3
    0.25
    ASMD2920-400
    6.73
    7.98
    4.8
    5.44
    0.6
    1.6
    0.3
    0.25
    ASMD2920-500
    6.73
    7.98
    4.8
    5.44
    0.6
    1.6
    0.3
    0.25
    ASMD2920-600
    6.73
    7.98
    4.8
    5.44
    0.6
    1.6
    0.3
    0.25
    ASMD2920-700
    6.73
    7.98
    4.8
    5.44
    0.6
    1.6
    0.3
    0.25
