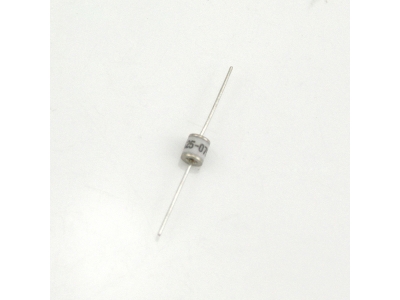

JTA25G-JTN25G series


    Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path forvoltage spikes.The ceramic envelope and with nickelconnectors allow for high loads and JDT offers products that function at 20KA, 40KA, 50KA, 60KA, 100KA & 150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations,security systems,HID and high quality Surge Protection Devices (SPD).




    •
                                            Brand：
                                            JDT  FUSE
      •

    •
                                            Classification：
                                            gas discharge tube
      •

    •
                                            Voltage：
                                            70-800V
      •

    •
                                            Current：
                                            5KA
      •




































    Electrical properties
    Part
    Number
    DC
     Spark-over
     Voltage
    Maximum
    Impulse
    Breakdown
    Voltage
    Max.
    Impulse
    Discharge
     Current
     (8/20μs)
    Impulse
    Life
    (10/1000μs)
    Normal
     Alternating
     Discharge
     Current
    DC
    Holdover
     Voltage
    Minimum
    insulation
     Resistance
    Maximum
     Capacitance
     (1MHz)
    100V/
     S
    100V/
     μS
    1KV/
     μS
    1
    times
    10
    times
    100A
    50Hz
    1Sec
    Single
    9Cycles
    (V)
    (V)
    (V)
    (KA)
    Times
    (A)
    (V)
    (GΩ)
    (pF)

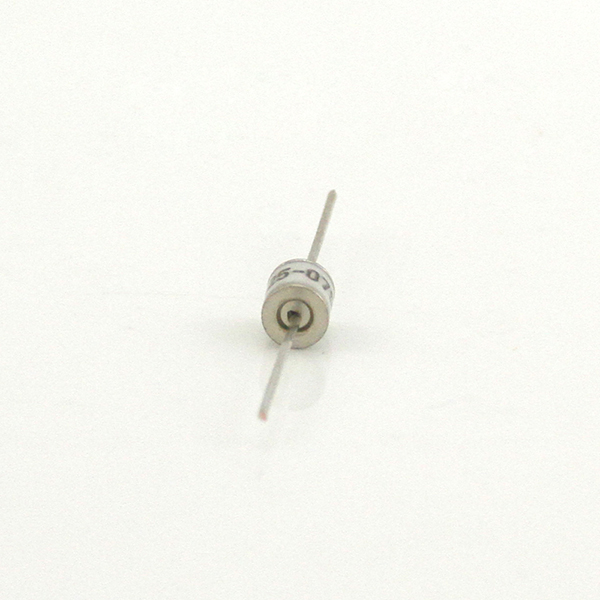

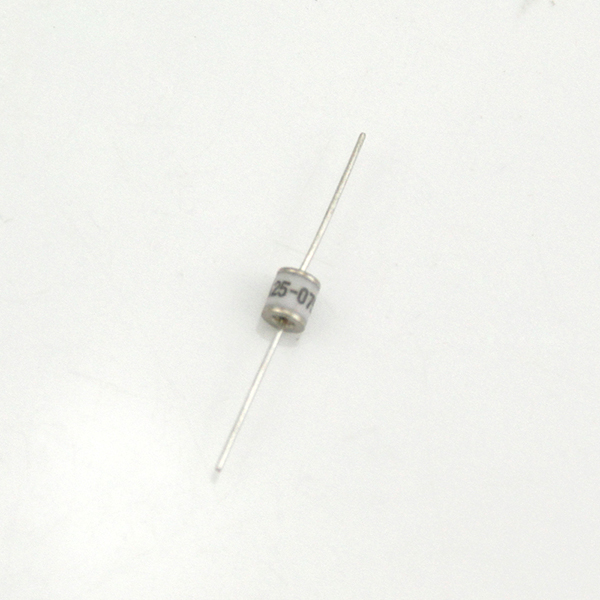

    JTA25-070G
    70±20%
    700
    800
    8
    5
    300
    5
    25
    52
    1
    1
    JTA25-075G
    75±20%
    700
    800
    8
    5
    300
    5
    25
    52
    1
    1
    JTA25-090G
    90±20%
    600
    700
    8
    5
    300
    5
    25
    52
    1
    1
    JTA25-150G
    150±20%
    600
    700
    8
    5
    300
    5
    25
    52
    1
    1
    JTA25-230G
    230±20%
    600
    700
    8
    5
    300
    5
    25
    80
    1
    1
    JTA25-250G
    250±20%
    600
    700
    8
    5
    300
    5
    25
    80
    1
    1
    JTA25-300G
    300±20%
    700
    900
    8
    5
    300
    5
    25
    150
    1
    1
    JTA25-350G
    350±20%
    700
    900
    8
    5
    300
    5
    25
    150
    1
    1
    JTA25-400G
    400±20%
    800
    1000
    8
    5
    300
    5
    25
    150
    1
    1
    JTA25-470G
    470±20%
    900
    1100
    8
    5
    300
    5
    25
    150
    1
    1
    JTA25-600G
    600±20%
    1300
    1500
    8
    5
    300
    5
    25
    150
    1
    1
    JTA25-800G
    800±20%
    1500
    1700
    8
    5
    300
    5
    25
    150
    1
    1

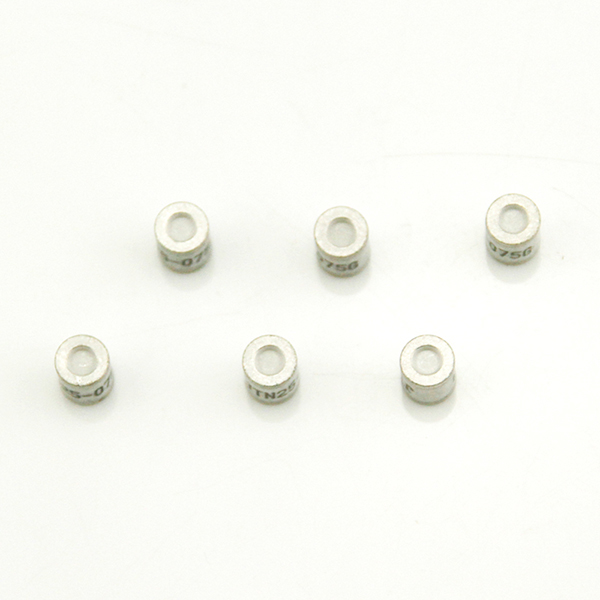

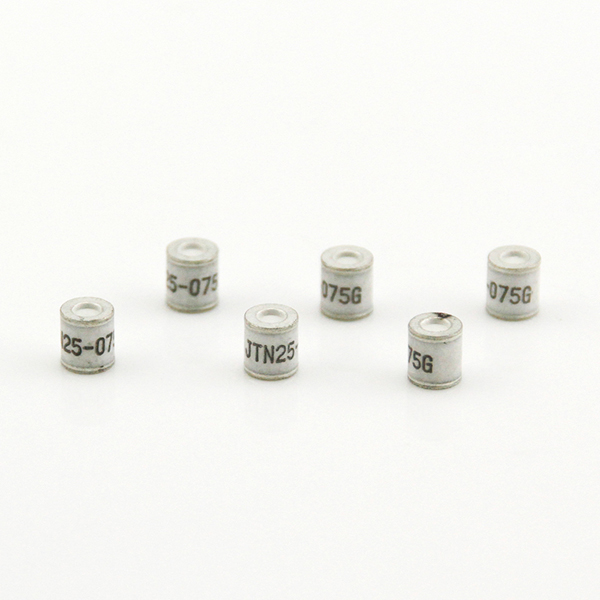

    JTN25-070G
    70±20%
    700
    800
    8
    5
    300
    5
    25
    52
    1
    1
    JTN25-075G
    75±20%
    700
    800
    8
    5
    300
    5
    25
    52
    1
    1
    JTN25-090G
    90±20%
    600
    700
    8
    5
    300
    5
    25
    52
    1
    1
    JTN25-150G
    150±20%
    600
    700
    8
    5
    300
    5
    25
    52
    1
    1
    JTN25-230G
    230±20%
    600
    700
    8
    5
    300
    5
    25
    80
    1
    1
    JTN25-250G
    250±20%
    600
    700
    8
    5
    300
    5
    25
    80
    1
    1
    JTN25-300G
    300±20%
    700
    900
    8
    5
    300
    5
    25
    150
    1
    1
    JTN25-350G
    350±20%
    700
    900
    8
    5
    300
    5
    25
    150
    1
    1
    JTN25-400G
    400±20%
    800
    1000
    8
    5
    300
    5
    25
    150
    1
    1
    JTN25-470G
    470±20%
    900
    1100
    8
    5
    300
    5
    25
    150
    1
    1
    JTN25-600G
    600±20%
    1300
    1500
    8
    5
    300
    5
    25
    150
    1
    1
    JTN25-800G
    800±20%
    1500
    1700
    8
    5
    300
    5
    25
    150
    1
    1
