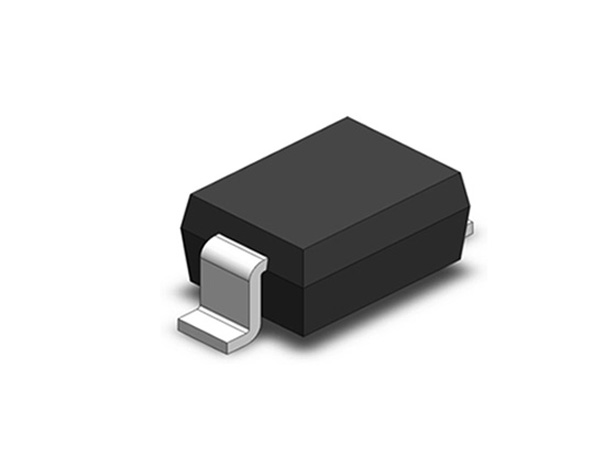

SOD323封裝系列ESD保護器，具有反應速度快，導通電壓低、體積小、集成度高、同時實現多條數據線保護，電容值較低，是理想的高頻數據保護器件，多樣化封裝,完全可實現在不同位置、空間上靈活的集成化ESD保護。

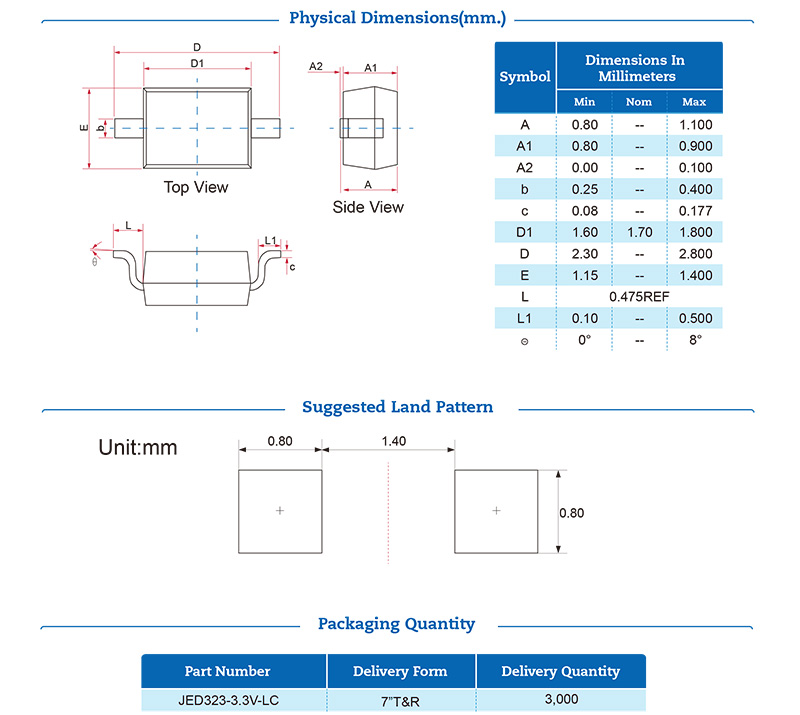

封裝:SOD-323
| Part No. | VRWM .max (V) | VBR .min (V) | CJ .typ (pF) | Ppp @8/20μs (W) | Ipp @8/20μs (A) | IR .max (μA) | Contact (kV) | Channel | Inner Diagram | Package | |
| JED323-15V | 15 | 16.5 | 230 | 1200 | 43 | 0.5 | ±30 | 1 |  | SOD-323 |  |
| JED323-3.3V-C | 3.3 | 3.8 | 100 | 300 | 25 | 1 | ±30 | 1 |  | SOD-323 | |
| JED323-5V-C | 5 | 6 | 80 | 300 | 20 | 1 | ±30 | 1 | | SOD-323 | |
| JED323-8V-C | 8 | 8.5 | 60 | 300 | 18 | 0.5 | ±30 | 1 | | SOD-323 | |
| JED323-12V-C | 12 | 13.3 | 32 | 300 | 12 | 0.5 | ±30 | 1 | | SOD-323 | |
| JED323-15V-C | 15 | 16.7 | 50 | 450 | 18 | 0.5 | ±30 | 1 | | SOD-323 | |
| JED323-24V-C | 24 | 27 | 15 | 300 | 5 | 0.2 | ±30 | 1 | | SOD-323 | |
| JED323-36V-C | 36 | 38 | 12 | 300 | 4 | 0.2 | ±30 | 1 | | SOD-323 | |
| JED323-3.3V-LC | 3.3 | 2.8 | 1 | 340 | 21 | 0.2 | ±30 | 1 | | SOD-323 | |
| JED323-5V-LC | 5 | 6 | 1 | 360 | 18 | 0.2 | ±30 | 1 | | SOD-323 | |
| JED323-8V-LC | 8 | 8.5 | 1 | 350 | 18 | 0.2 | ±30 | 1 | | SOD-323 | |
| JED323-12V-LC | 12 | 13.3 | 1 | 350 | 14 | 0.2 | ±30 | 1 | | SOD-323 | |
| JED323-15V-LC | 15 | 16.7 | 1 | 300 | 10 | 0.2 | ±30 | 1 | | SOD-323 | |
| JED323-24V-LC | 24 | 24 | 1 | 360 | 6 | 0.2 | ±30 | 1 | | SOD-323 | |
VRWM：Reverse Working Voltage
VBR：Snap-Back Voltage
CJ：Junction Capacitance
Ppp：Peak Pulse Power
Ipp：Peak Pulse Current
IR：Reverse Leakage Current
Contact：IEC 61000-4-2;Contact Discharge
