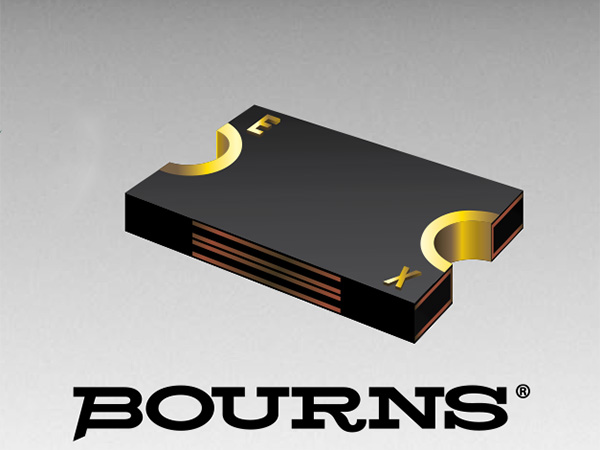

Bourns伯恩斯MF-LSMF系列自恢復保險絲


    Bourns伯恩斯MF-MSMF系列自恢復保險絲屬表面貼裝保險絲，封裝尺寸為2920，用于保護的快速跳閘時間（TTT），過流保護器件，具有優異的可焊性，對稱設計。符合RoHS標準*且無鹵素




    •
                                            品牌：
                                            伯恩斯/Bourns
      •

    •
                                            分類：
                                            SMD自恢復保險絲
      •

    •
                                            最大電壓：
                                            6~60V
      •

    •
                                            額定電流：
                                            0.3A~6A
      •

    •
                                            封裝：
                                            2920封裝
      •




































    JDTFUSEBourns伯恩斯MF-LSMF系列規格書
    Model
    Vmax.
     (V)
    Imax.
     (A)
    Ihold

 at23℃
    (A)
    Itrip

 @23℃
    (A)
    Pd
    typ.
    (W)
    Maximum Time To Trip
    @23℃
    Resistance
    @23℃
    Current
    (A)
    Time  (Sec.)
    Rimin.
     (Ω)
    R1max.
     (Ω)
    MF-LSMF030X
    60
    40
    0.30
    0.6
    1.5
    1.5
    3.0
    0.90
    4.8
    MF-LSMF050X
    60
    40
    0.50
    1.0
    1.5
    2.5
    4.0
    0.20
    1.4
    MF-LSMF075X
    30
    40
    0.75
    1.5
    1.5
    8.0
    0.3
    0.15
    1.0
    MF-LSMF075/60X
    60
    40
    0.75
    1.5
    1.5
    8.0
    0.3
    0.15
    1.0
    MF-LSMF110X
    33
    40
    1.10
    2.2
    1.5
    8.0
    0.5
    0.07
    0.41
    MF-LSMF110/60X
    60
    40
    1.10
    2.2
    2.0
    8.0
    0.5
    0.07
    0.41
    MF-LSMF125X
    15
    40
    1.25
    2.5
    1.5
    8.0
    2.0
    0.05
    0.25
    MF-LSMF125/33X
    33
    40
    1.25
    2.5
    1.5
    8.0
    2.0
    0.055
    0.25
    MF-LSMF150X
    15
    40
    1.50
    3.0
    1.5
    8.0
    2.0
    0.05
    0.23
    MF-LSMF150/33X
    33
    40
    1.50
    3.0
    1.5
    8.0
    2.0
    0.05
    0.23
    MF-LSMF185X
    15
    40
    1.85
    3.7
    1.5
    8.0
    2.5
    0.045
    0.15
    MF-LSMF185/24X
    24
    40
    1.85
    3.7
    1.5
    8.0
    2.5
    0.045
    0.15
    MF-LSMF185/33X
    33
    40
    1.85
    3.7
    1.5
    8.0
    2.5
    0.045
    0.15
    MF-LSMF200X
    15
    40
    2.00
    4.0
    1.5
    8.0
    5.0
    0.035
    0.125
    MF-LSMF200/24X
    24
    40
    2.00
    4.0
    1.5
    8.0
    5.0
    0.035
    0.125
    MF-LSMF260X
    24
    40
    2.60
    5.2
    1.5
    8.0
    5.0
    0.020
    0.075
    MF-LSMF260/6X
    6
    40
    2.60
    5.0
    1.5
    8.0
    10
    0.020
    0.075
    MF-LSMF260/16X
    16
    40
    2.60
    5.2
    1.5
    8.0
    5.0
    0.020
    0.075
    MF-LSMF300X
    6
    40
    3.00
    5.0
    1.5
    8.0
    15
    0.015
    0.048
    MF-LSMF300/16X
    16
    40
    3.00
    5.0
    1.5
    8.0
    15
    0.015
    0.048
    MF-LSMF300/24X
    24
    40
    3.00
    5.2
    1.5
    8.0
    15
    0.015
    0.075
    MF-LSMF330X
    6
    40
    3.30
    5.5
    2.0
    8.0
    15
    0.010
    0.055
    MF-LSMF330/12X
    12
    40
    3.30
    5.5
    2.0
    8.0
    15
    0.010
    0.055
    MF-LSMF330/16X
    16
    40
    3.30
    55
    2.0
    8.0
    15
    0.010
    0.055
    MF-LSMF330/24X
    24
    40
    3.30
    5.5
    2.0
    8.0
    15
    0.010
    0.055
    MF-LSMF400/16X
    16
    40
    4.00
    8.0
    1.5
    20
    4.0
    0.005
    0.040
    MF-LSMF500/16X
    16
    40
    5.00
    10.0
    1.5
    20
    5.0
    0.005
    0.025
    MF-LSMF600/12X
    12
    50
    6.00
    12.0
    2.0
    30
    2.0
    0.004
    0.020

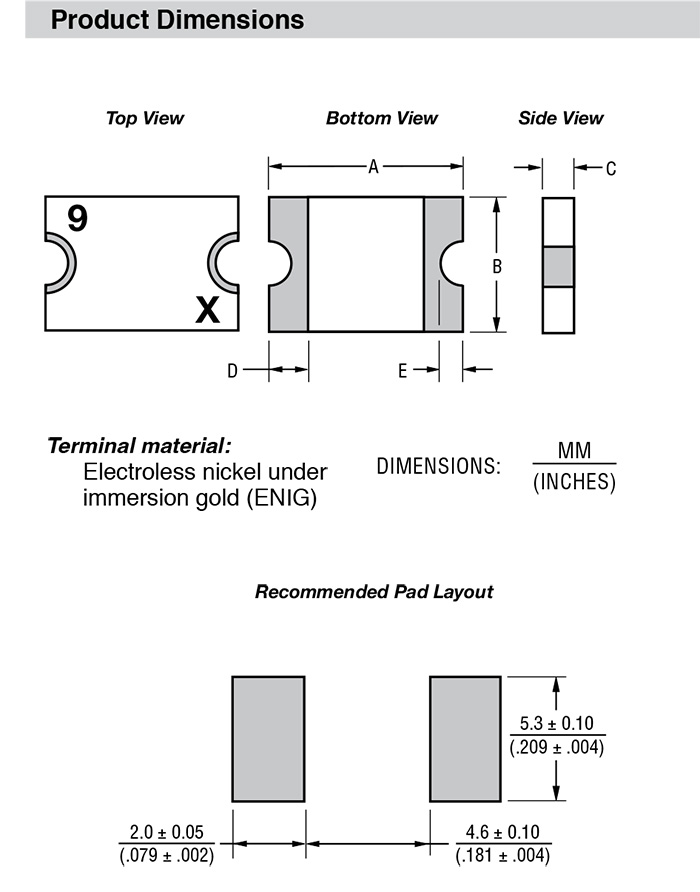

    JDTFUSE
    Model
    A
    B
    C
    D
    E
    Min.
    Max.
    Min.
    Max.
    Min.
    Max.
    Min.
    Max.
    Min.
    Max.
    MF-LSMF030X
    6.73/0.265
    7.98/0.314
    4.8/0.189
    5.44/0.214
    0.75/0.03
    1.25/0.049
    0.3/0.012
    		2.5/0.0980.25/0.012/0.079
    MF-LSMF050X
    0.75/0.03
    1.25/0.049
    MF-LSMF075X
    0.35/0.014
    0.85/0.033
    MF-LSMF075/60X
    0.75/0.03
    1.7/0.067
    MF-LSMF110X
    0.35/0.014
    0.85/0.033
    MF-LSMF110/60X
    0.75/0.03
    1.7/0.067
    MF-LSMF125X
    0.35/0.014
    0.85/0.033
    MF-LSMF125/33X
    0.75/0.03
    1.6/0.063
    MF-LSMF150X
    0.35/0.014
    0.85/0.033
    MF-LSMF150/33X
    0.75/0.03
    1.6/0.063
    MF-LSMF185X
    0.35/0.014
    0.85/0.033
    MF-LSMF185/24X
    0.75/0.03
    1.6/0.063
    MF-LSMF185/33X
    0.75/0.03
    1.6/0.063
    MF-LSMF200X
    0.75/0.03
    1.6/0.063
    MF-LSMF200/24X
    0.75/0.03
    1.6/0.063
    MF-LSMF260X
    0.75/0.03
    1.6/0.063
    MF-LSMF260/6X
    0.35/0.014
    0.85/0.033
    MF-LSMF260/16X
    0.75/0.03
    1.6/0.063
    MF-LSMF300X
    0.35/0.014
    0.85/0.033
    MF-LSMF300/16X
    0.75/0.03
    1.6/0.063
    MF-LSMF300/24X
    0.75/0.03
    1.6/0.063
    MF-LSMF330X
    0.35/0.014
    0.85/0.033
    MF-LSMF330/12X
    0.75/0.03
    1.6/0.063
    MF-LSMF330/16X
    0.75/0.03
    1.6/0.063
    MF-LSMF330/24X
    0.75/0.03
    1.6/0.063
    MF-LSMF400/16X
    0.75/0.03
    1.6/0.063
    MF-LSMF500/16X
    0.75/0.03
    1.6/0.063
    MF-LSMF600/12X
    0.75/0.03
    1.6/0.063
    DIMENSIONS:MM/INCHES
