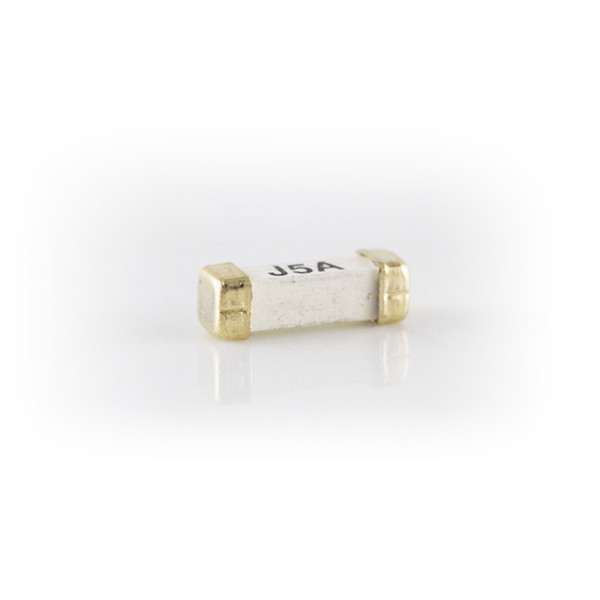

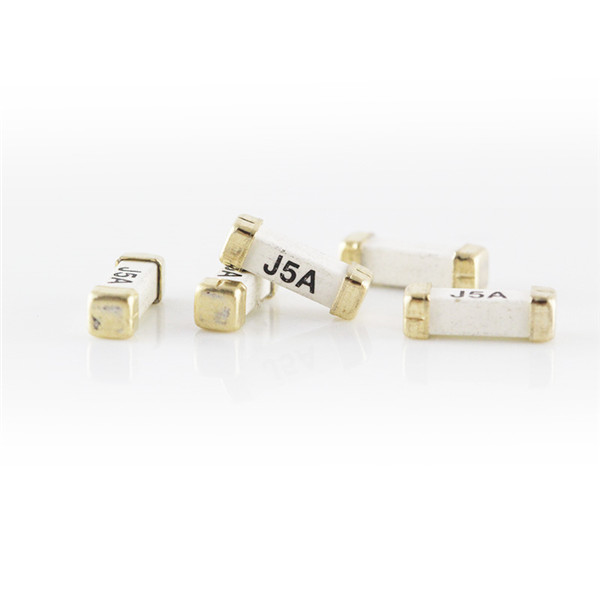

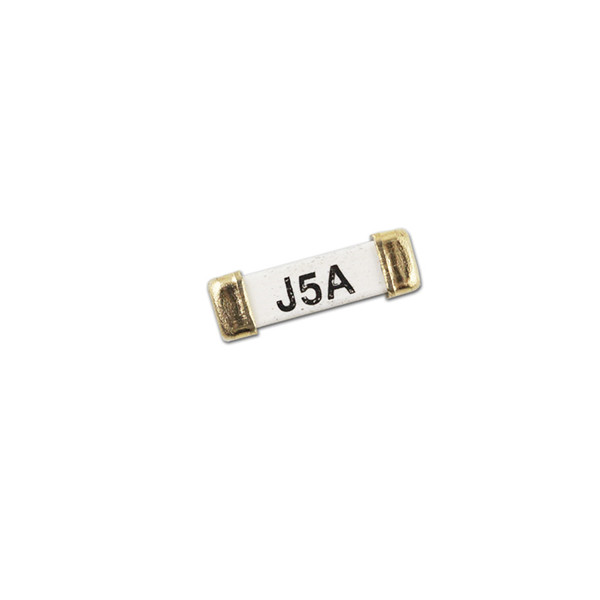

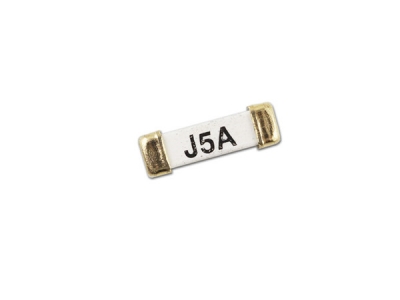

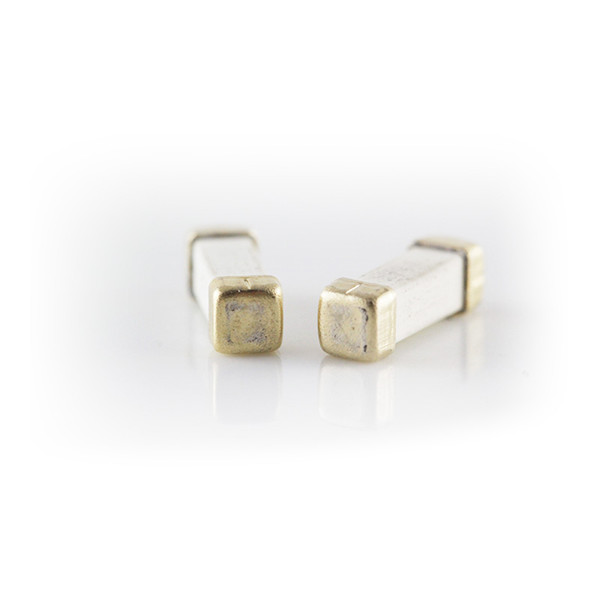

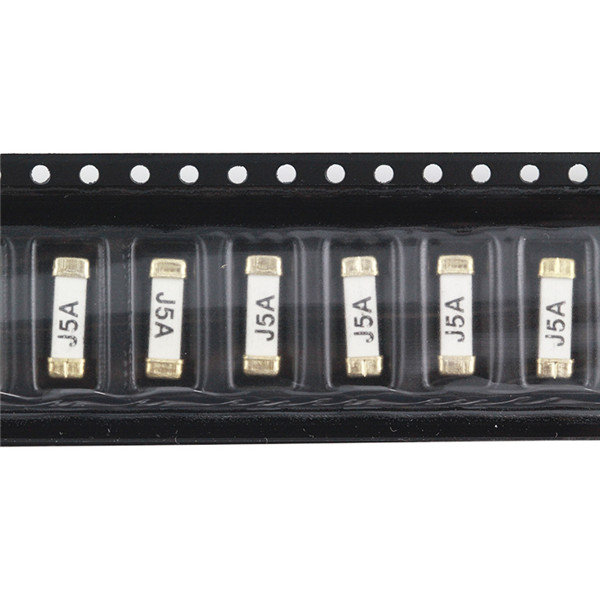

JFC1032一次性貼片保險絲


    集電通JFC1032系列產品為一次性表面貼裝保險絲，主要專為高端云計算服務器、電信基站電源、Bang-Cu鏈服務和新能源汽車電池管理系統設計打造的。此產品符合RoHS標準、無鹵素、無鉛。VE（2002/95 / EC），與美國（UL/CSA）安全機構批準。廣泛應用于初級、次級電路板進行電路保護 。具有良好的抗浪涌能力。主要性能特征是快速熔斷；高額定電流。




    •
                                            品牌：
                                            集電通/JDTFUSE
      •

    •
                                            分類：
                                            一次性貼片保險絲
      •

    •
                                            最大電壓：
                                            250V/600V
      •

    •
                                            額定電流：
                                            0.2A~60A
      •




































    JDTFUSEJFC1032FS快斷 規格書
    JDTFUSEJFC1032TS慢斷 規格書
    JDTFUSE
    Part No.Rated Current
    (A)    		Max Voltage Rating
    (V)    		Breaking CapacityTypical Cold. Resistance (mΩ)Typical Pre-Arcing I2t (A2 S)
    JFC1032-0200FS0.20600V AC/DC35A@600V AC/DC
    100A@350V AC/DC
    150A@250V AC/DC
    150A@125V AC/DC    		9200.36
    JFC1032-0250FS0.258600.39
    JFC1032-0300FS0.308090.42
    JFC1032-0315FS0.3157680.46
    JFC1032-0375FS0.3757100.53
    JFC1032-0400FS0.406650.65
    JFC1032-0500FS0.506000.78
    JFC1032-0600FS0.605600.80
    JFC1032-0630FS0.635000.83
    JFC1032-0700FS0.702800.84
    JFC1032-0750FS0.752000.85
    JFC1032-0800FS0.801800.86
    JFC1032-1100FS1.00750.87
    JFC1032-1125FS1.25781.16
    JFC1032-1150FS1.50692.2
    JFC1032-1160FS1.60602.5
    JFC1032-1200FS2.00503.8
    JFC1032-1250FS2.50250V AC/DC50A@400V AC/DC
    100A@350V AC/DC
    150A@250V AC/DC
    150A@125V AC/DC    		455.2
    JFC1032-1300FS3.00367.5
    JFC1032-1315FS3.15338.0
    JFC1032-1350FS3.50299.9
    JFC1032-1400FS4.002315.8
    JFC1032-1500FS5.001835
    JFC1032-1600FS6.001555
    JFC1032-1630FS6.3012.165
    JFC1032-1700FS7.0010.670
    JFC1032-2100FS10.08.0591
    JFC1032-2150FS15.04.50203
    JFC1032-2200FS20.03.30360
    JFC1032-2250FS25.02.25563
    JFC1032-2300FS30.01.98810
    JFC1032-2400FS40.0125V DC
    250V AC    		1KA@32V DC
    500A@72V DC
    300A@125V DC
    100A@250V AC    		1.201360
    JFC1032-2500FS50.00.981946
    JFC1032-2600FS60.00.902285
    * DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source)
    ** DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25°C
    *** Typical Melting I2t (Measured with a battery bank at rated DC voltage, Measured at 1ms open time, time constant
    of calibrated circuit less than 50 microseconds).
