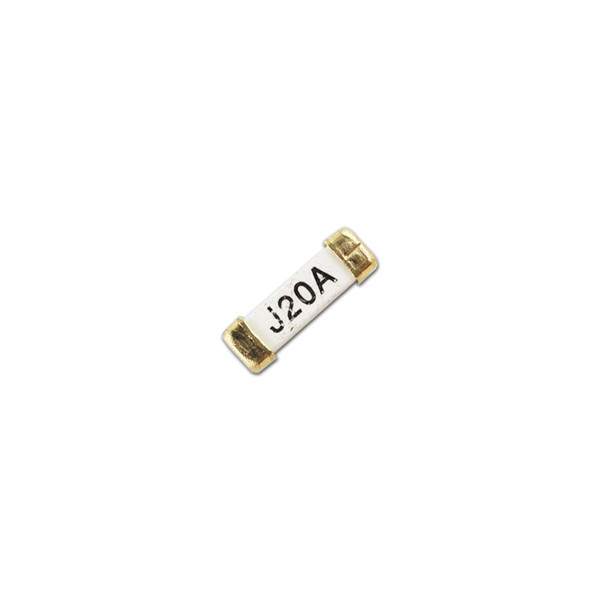

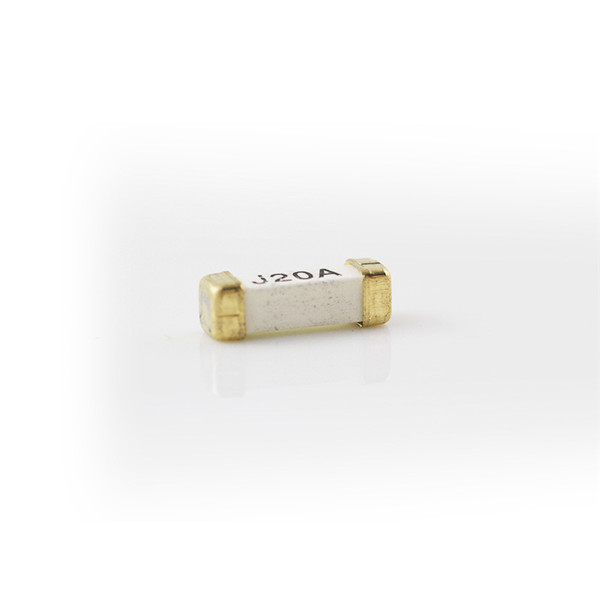

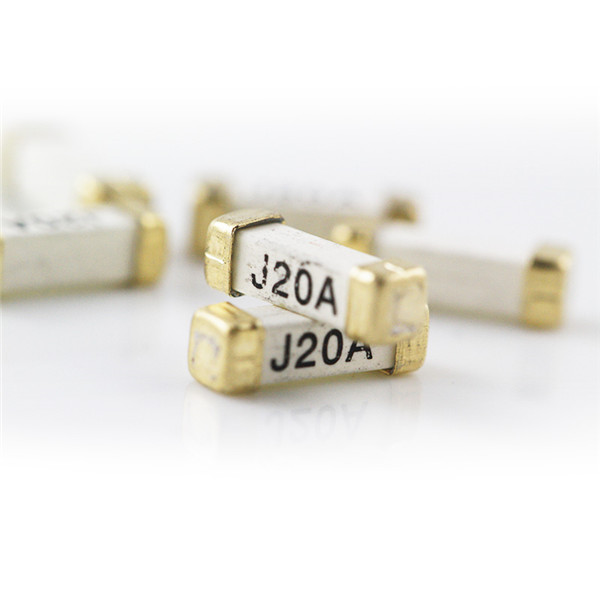

JFC1245一次性貼片保險絲


    集電通JFC1245系列產品為方形表面貼裝保險絲，主要專為高端云計算服務器、電信基站電源、Bang-Cu鏈服務和新能源汽車電池管理系統設計打造的。此產品符合RoHS標準、無鹵素、無鉛。VE（2002/95 / EC），與美國（UL/CSA）安全機構批準。廣泛應用于初級、次級電路板進行電路保護 。具有良好的抗浪涌能力。主要性能特征是快速熔斷；高額定電流。




    •
                                            品牌：
                                            集電通/JDTFUSE
      •

    •
                                            分類：
                                            一次性貼片保險絲
      •

    •
                                            最大電壓：
                                            125V/250V
      •

    •
                                            額定電流：
                                            1A ~100A
      •




































    JDTFUSEJFC1245FS快斷 規格書
    JDTFUSEJFC1245TS慢斷 規格書
    JDTFUSE
    Part No.Rated Current
    (A)    		Max Voltage Rating
    (V)    		Breaking CapacityTypical Cold. Resistance (mΩ)Typical Pre-Arcing I2t (A2 S)
    JFC1245-1100FS1.00250V DC
    600V AC    		1KA@32V DC
    500A@72V DC
    300A@125V DC
    100A@250V DC
    100A@600V AC    		82.50.30
    JFC1245-1150FS1.5075.90.39
    JFC1245-1200FS2.0055.00.90
    JFC1245-1250FS2.5049.51.49
    JFC1245-1315FS3.1536.33.30
    JFC1245-1500FS5.00125V DC
    250V AC    		1KA@32V DC
    500A@72V DC
    300A@125V DC

 100A@250V AC    		19.823.0
    JFC1245-2100FS10.07.9791.0
    JFC1245-2150FS15.04.46203
    JFC1245-2200FS20.03.27360
    JFC1245-2250FS25.02.22563
    JFC1245-2300FS30.01.96810
    JFC1245-2400FS40.01.191360
    JFC1245-2500FS50.00.991949
    JFC1245-2600FS60.00.802887
    JFC1245-2800FS80.00.665270
    JFC1245-3100FS100.00.558080
    * DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source)
    ** DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25°C
    *** Typical Melting I2t (Measured with a battery bank at rated DC voltage, Measured at 1ms open time, time constant
    of calibrated circuit less than 50 microseconds).
